F/BBM-C - Union SDR 11 - S5
Union bush, short spigot, for butt welding for union BBM-C SDR 11 - S5.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

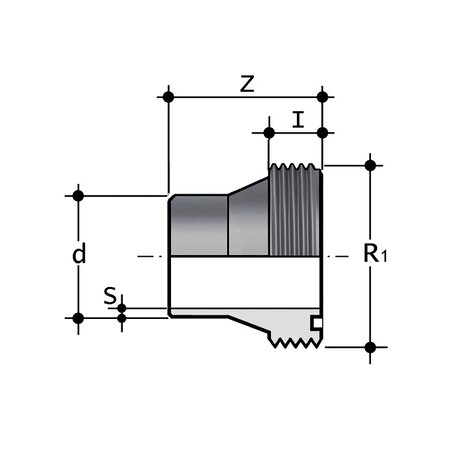

| Reference | d | R | I | S | Z | g |
|---|---|---|---|---|---|---|
| FBBMC11020 | 20 | 1" | 13 | 1,9 | 54 | 20 |
| FBBMC11025 | 25 | 1"1/4 | 13 | 2,3 | 54 | 27 |
| FBBMC11032 | 32 | 1"1/2 | 14 | 2,9 | 54 | 40 |
| FBBMC11040 | 40 | 2" | 16 | 3,7 | 54 | 60 |
| FBBMC11050 | 50 | 2"1/4 | 18 | 4,6 | 54 | 86 |
| FBBMC11063 | 63 | 2"3/4 | 20 | 5,8 | 54 | 147 |
