HBM PN10 SDR 11 - S 5 - Raccordement d'extrémité égal

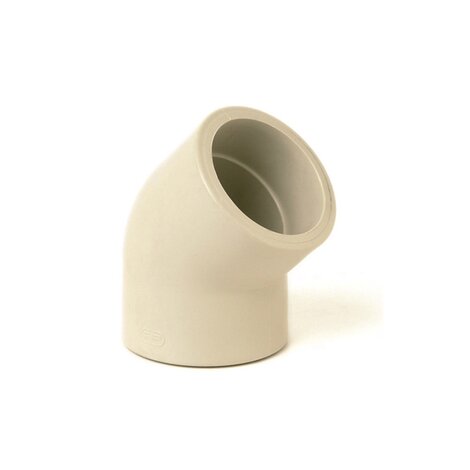

Coude 45° long tang pour soudure bout à bout PN10 SDR 11 - S 5.
Série de raccords destinés à l'acheminement de fluides sous pression avec un système de connexion par soudure bout à bout.

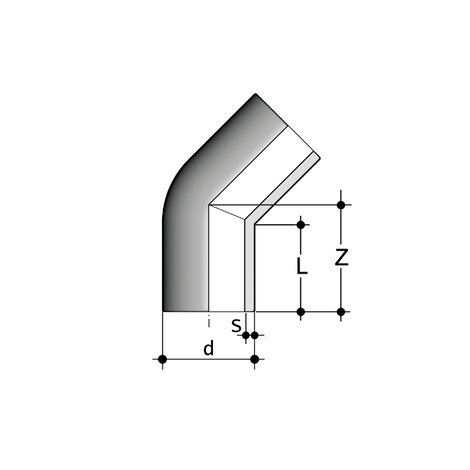

| Référence | product.detail.attribute.d | product.detail.attribute.L | product.detail.attribute.Z | product.detail.attribute.s | product.detail.attribute.g | product.detail.attribute.[["d" |
|---|---|---|---|---|---|---|
| HBM11020 | *20 | 52 | 72 | 1,9 | 19 | - |
| HBM11025 | - | - | - | - | - | *25] |
| HBM11032 | *32 | 71 | 90 | 2,9 | 56 | - |
| HBM11040 | *40 | 73 | 95 | 3,7 | 88 | - |
| HBM11050 | *50 | 62 | 76 | 4,6 | 110 | - |
| HBM11063 | *63 | 66 | 88 | 5,8 | 205 | - |
| HBM11075 | *75 | 71 | 90 | 6,8 | 290 | - |
| HBM11090 | *90 | 83 | 105 | 8,2 | 460 | - |
| HBM11110 | *110 | 93 | 121 | 10 | 785 | - |
| HBM11125 | *125 | 98 | 137 | 11,4 | 1130 | - |
| HBM11140 | *140 | 122 | 168 | 12,7 | 1685 | - |
| HBM11160 | *160 | 143 | 190 | 14,6 | 2550 | - |
| HBM11180 | *180 | 141 | 196 | 16,4 | 3285 | - |
| HBM11200 | *200 | 153 | 207 | 18,2 | 4540 | - |
| HBM11225 | *225 | 153 | 210 | 20,5 | 5750 | - |
| HBM11250 | *250 | 134 | 220 | 22,7 | 7875 | - |
| HBM11280 | *280 | 143 | 227 | 25,4 | 10060 | - |
| HBM11315 | *315 | 155 | 250 | 28,6 | 13675 | - |
*produits de revente
