RES

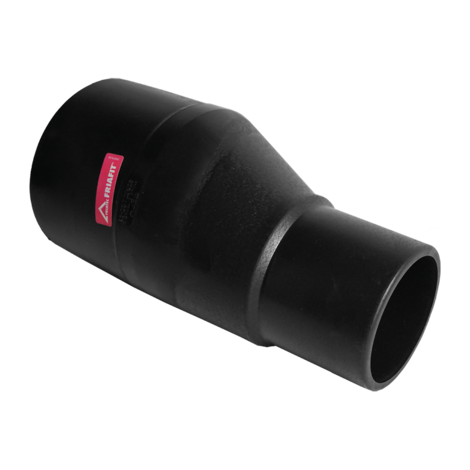

Réduction excentrique (raccord de tubulure)
Réduction excentrique, SDR 17 (raccord de tubulure) RES
- Raccord PE-HD pour mise en œuvre sans dispositif de retenue avec manchons FRIAFIT AM
Remarque :
Autres dimensions sur demande.
PE 100
Pression d'essai maximale admissible 0,5 bar selon DIN EN 1610

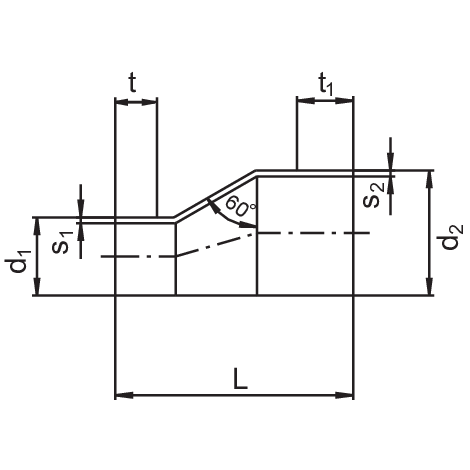

| Référence | product.detail.attribute.d1Small | product.detail.attribute.d2Small | product.detail.attribute.s1Small | product.detail.attribute.s2Small | product.detail.attribute.tSmall | product.detail.attribute.t1Small | product.detail.attribute.weight | product.detail.attribute.packUnit |
|---|---|---|---|---|---|---|---|---|
| 681018 | 110 | 125 | 6,6 | 7,4 | 85 | 85 | 0,700 | 1 |
| 681801 | 110 | 160 | 6,6 | 9,5 | 90 | 95 | 1,400 | 1 |
| 681802 | 160 | 225 | 9,5 | 13,4 | 100 | 150 | 3,200 | 1 |
| 681804 | 200 | 225 | 11,9 | 12,8 | 100 | 250 | 4,100 | 1 |
| 681810 | 225 | 280 | 13,4 | 16,6 | 150 | 250 | 11,500 | 1 |
