Conduite sous pression - PN 10 - SDR 21

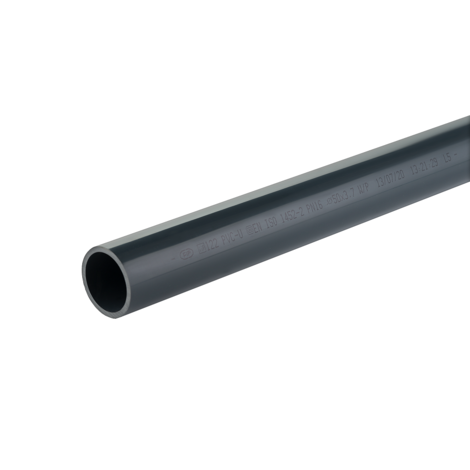

Tuyau de pression en PVC-U conforme à EN ISO 15493 et DIN 8061/8062, gris foncé RAL 7011, longueur standard 5m.
Tuyaux sous pression pour système d'assemblage par soudage chimique à froid (collage) à l'aide d'un adhésif approprié et d'un détergent primaire.
| Référence | product.detail.attribute.[["d" | product.detail.attribute.d | product.detail.attribute.S mm | product.detail.attribute.kg/m |
|---|---|---|---|---|
| PIPEV21032 | 32] | - | - | - |
| PIPEV21040 | - | 40 | 1,9 | 0,360 |
| PIPEV21050 | - | 50 | 2,4 | 0,567 |
| PIPEV21063 | - | 63 | 3 | 0,878 |
| PIPEV21075 | - | 75 | 3,6 | 1,258 |
| PIPEV21090 | - | 90 | 4,3 | 1,798 |
| PIPEV21110 | - | 110 | 5,3 | 2,670 |
| PIPEV21125 | 125] | - | - | - |
| PIPEV21140 | - | 140 | 6,7 | 4,412 |
| PIPEV21160 | - | 160 | 7,7 | 5,780 |
| PIPEV21180 | - | 180 | 8,6 | 7,462 |
| PIPEV21200 | - | 200 | 9,6 | 8,990 |
| PIPEV21225 | - | 225 | 10,8 | 11,356 |
| PIPEV21250 | - | 250 | 11,9 | 13,892 |
| PIPEV21280 | - | 280 | 13,4 | 17,529 |
| PIPEV21315 | 315] | - | - | - |
*produit de revente
