GIF
Raccords à souder à poche - extrémités égales.

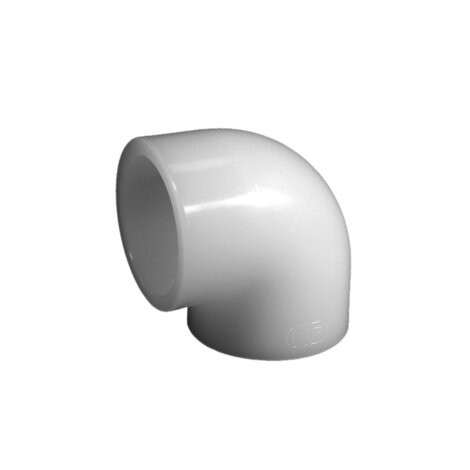

Coude de 90° pour le soudage en poche.
Série de raccords destinés à l'acheminement de fluides sous pression avec un système d'assemblage par soudure en poche.

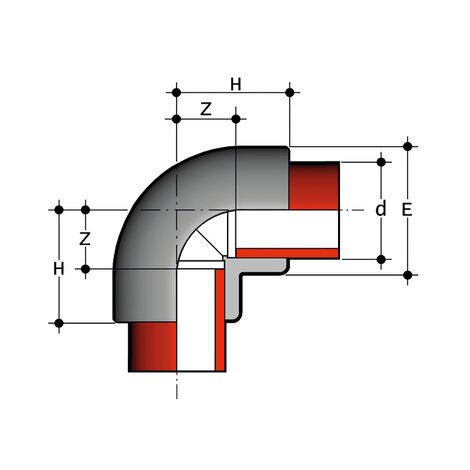

| Référence | product.detail.attribute.d | product.detail.attribute.PN | product.detail.attribute.E | product.detail.attribute.H | product.detail.attribute.Z | product.detail.attribute.g |
|---|---|---|---|---|---|---|
| GIF016 | 16 | 16 | 22 | 23 | 10 | 14 |
| GIF020 | 20 | 16 | 28 | 27 | 13 | 28 |
| GIF025 | 25 | 16 | 33 | 32 | 16 | 43 |
| GIF032 | 32 | 16 | 41 | 37 | 19 | 65 |
| GIF040 | 40 | 16 | 52 | 43 | 23 | 125 |
| GIF050 | 50 | 16 | 63 | 51 | 27 | 195 |
| GIF063 | 63 | 16 | 77 | 61 | 34 | 340 |
| GIF075 | 75 | 16 | 92 | 73 | 42 | 575 |
| GIF090 | 90 | 16 | 110 | 83 | 47 | 850 |
| GIF110 | 110 | 16 | 133 | 99 | 58 | 1470 |
