WRK

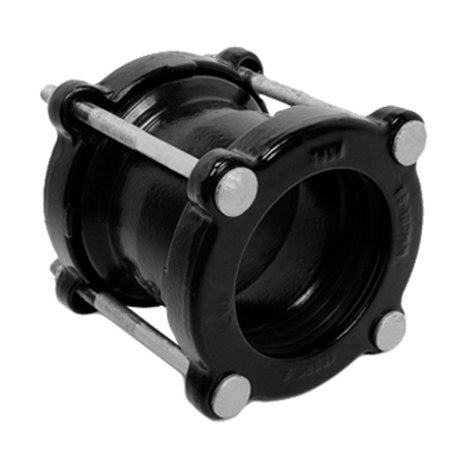

Raccord Wide-Range (pièce en U)
Raccord pour le raccordement de tuyaux de différents matériaux (acier, fonte, fonte ductile, amiante-ciment, PVC, PE-HD/PEX).
- Boîtier et bague de suivi en acier
- Protection anticorrosion Rilsan (min. 250 µm selon GSK)
- Vis et écrous galvanisés/revêtus de sheraplex ou en acier inoxydable
- Matériau du joint EPDM
- Tolérance de diamètre max. 17 mm
- Possibilité de couder les tubes de 6 degrés max.
- Plage de température : -20°C - +30°C
Remarque:
Pour l'application sur des tubes PE-HD/PEX, notre douille de soutien interne SHVA est nécessaire. Comme alternative, nous recommandons le produit FRIAGRIP à adhérence longitudinale.
Raccord Wide-Range (pièce en U)
| Référence | product.detail.attribute.Art-Bez | product.detail.attribute.dSmall | DN | product.detail.attribute.B2_string | product.detail.attribute.L_String | product.detail.attribute.weight | product.detail.attribute.packUnit | product.detail.attribute.palletUnit |
|---|---|---|---|---|---|---|---|---|
| GB-02R9-351 | HRH/Sechskant | 351,0-368,0 | 350 | 339 | 200 | 32,400 | 1 | 2 |
| GB-02R9-374 | HRH/Sechskant | 374,5-391,5 | 350 | 339 | 200 | 34,200 | 1 | 1 |
| GB-02R9-394 | HRH/Sechskant | 394,3-411,3 | 350 | 339 | 200 | 35,600 | 1 | 1 |
| GB-02R9-418 | HRH/Sechskant | 418,2-435,2 | 350 | 339 | 200 | 37,600 | 1 | 1 |
| GB-02R9-447 | HRH/Sechskant | 447,2-464,2 | 350 | 339 | 200 | 39,500 | 1 | 1 |
| GB-02R9-455 | HRH/Sechskant | 455,0-472,0 | 350 | 339 | 200 | 39,500 | 1 | 1 |
| GB-02R9-476 | HRH/Sechskant | 476,0-493,0 | 350 | 339 | 200 | 43,000 | 1 | 1 |
| GB-02R9-501 | HRH/Sechskant | 501,9-518,9 | 350 | 339 | 200 | 44,500 | 1 | 1 |
| GB-02R9-527 | HRH/Sechskant | 527,0-544,0 | 350 | 339 | 200 | 46,000 | 1 | 1 |
| GB-02R9-555 | HRH/Sechskant | 555,3-572,3 | 350 | 339 | 200 | 47,600 | 1 | 1 |
| GB-02R9-630 | HRH/Sechskant | 630,5-647,5 | 350 | 339 | 200 | 52,000 | 1 | 1 |
| GB-02R9-662 | HRH/Sechskant | 662,0-679,0 | 350 | 339 | 200 | 57,800 | 1 | 1 |
| GB-02R9-675 | HRH/Sechskant | 675,0-692,0 | 350 | 339 | 200 | 59,000 | 1 | 1 |
Raccord Wide-Range (pièce en U)
| Référence | product.detail.attribute.Art-Bez | product.detail.attribute.dSmall | DN | product.detail.attribute.B2_string | product.detail.attribute.L_String | product.detail.attribute.weight | product.detail.attribute.packUnit | product.detail.attribute.palletUnit |
|---|---|---|---|---|---|---|---|---|
| GB-02R9X351 | HRH/Sechskant | 351,0-368,0 | 350 | 339 | 200 | 32,400 | 1 | 2 |
| GB-02R9X374 | HRH/Sechskant | 374,5-391,5 | 350 | 339 | 200 | 34,200 | 1 | 1 |
| GB-02R9X394 | HRH/Sechskant | 394,3-411,3 | 350 | 339 | 200 | 35,600 | 1 | 1 |
| GB-02R9X418 | HRH/Sechskant | 418,2-435,2 | 350 | 339 | 200 | 37,600 | 1 | 1 |
| GB-02R9X447 | HRH/Sechskant | 447,2-464,2 | 350 | 339 | 200 | 39,100 | 1 | 1 |
| GB-02R9X455 | HRH/Sechskant | 455-0-472,0 | 350 | 339 | 200 | 39,500 | 1 | 1 |
| GB-02R9X476 | HRH/Sechskant | 476,0-493,0 | 350 | 339 | 200 | 43,000 | 1 | 1 |
| GB-02R9X501 | HRH/Sechskant | 501,9-518,9 | 350 | 339 | 200 | 44,500 | 1 | 1 |
| GB-02R9X527 | HRH/Sechskant | 527,0-544,0 | 350 | 339 | 200 | 47,700 | 1 | 1 |
| GB-02R9X555 | HRH/Sechskant | 555,3-572,3 | 350 | 339 | 200 | 47,600 | 1 | 1 |
| GB-02R9X630 | HRH/Sechskant | 630,5-647,5 | 350 | 339 | 200 | 56,100 | 1 | 1 |
| GB-02R9X662 | HRH/Sechskant | 662,0-679,0 | 350 | 339 | 200 | 57,800 | 1 | 1 |
| GB-02R9X675 | HRH/Sechskant | 675,0-692,0 | 350 | 339 | 200 | 59,000 | 1 | 1 |
| GB-02R9X689 | HRH/Sechskant | 689,0-706,0 | 350 | 339 | 200 | 56,300 | 1 | 1 |
| GB-02R9X695 | HRH/Sechskant | 695,0-712,0 | 350 | 339 | 200 | 56,700 | 1 | 1 |
| GB-02R9X710 | HRH/Sechskant | 710,0-727,0 | 350 | 339 | 200 | 57,700 | 1 | 1 |
| GB-02R9X733 | HRH/Sechskant | 733,0-750,0 | 350 | 339 | 200 | 60,100 | 1 | 1 |
