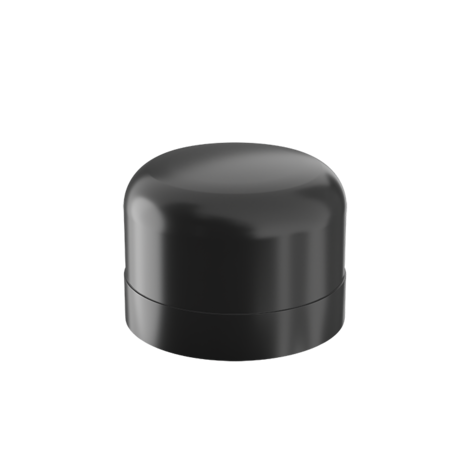

CLV - End cap
End cap with solvent weld socket.
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

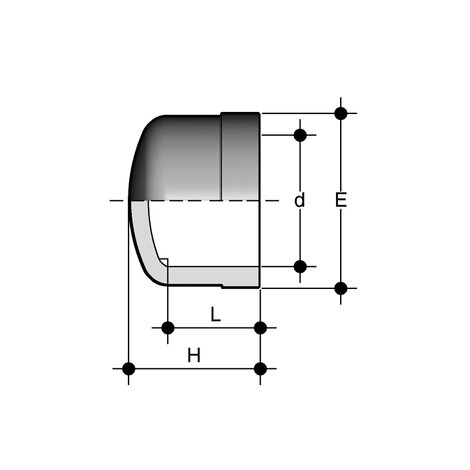

| Reference | d | PN | Class | E | L | Z | g |
|---|---|---|---|---|---|---|---|
| CLV012 | 1/2" | 15 | E | 27 | 16,5 | 2 | 13 |
| CLV034 | 3/4" | 15 | E | 33 | 19,5 | 2 | 15 |
| CLV100 | 1" | 15 | E | 41 | 22,5 | 2 | 36 |
| CLV114 | 1"1/4 | 15 | E | 50 | 26 | 3 | 58 |
| CLV112 | 1"1/2 | 15 | E | 61 | 31 | 3 | 118 |
| CLV200 | 2" | 15 | E | 76 | 38 | 3 | 206 |
| CIV075 | 2"1/2 | 15 | E | 90 | 44 | 4 | 250 |
| CLV300 | 3" | 15 | E | 108 | 50,5 | 5,5 | 420 |
| CLV400 | 4" | 15 | E | 131 | 63 | 5 | 680 |
