PQCE Power Quick/CE
Accessories for VKD and TKD Dual Block® series ball valves DN 10÷50
The valve can be equipped with electric actuators, using the PP-GR module reproducing the drilling pattern foreseen by ISO 5211

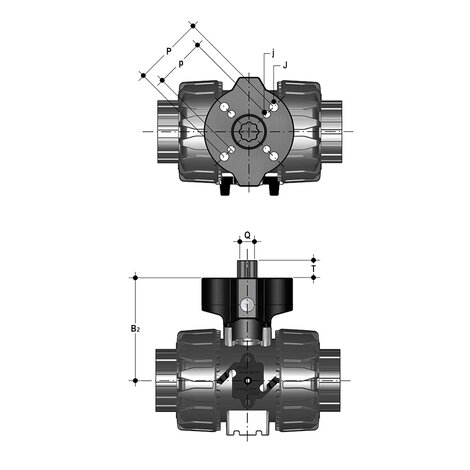

| Reference | d | DN | B2 | Q | T | p x j | P X J | to be used with: |
|---|---|---|---|---|---|---|---|---|
| PQCE020 | 16 | 10-15 | 58 | 14 | 16 | F03 x 5,5 | F04 x 5,5 | VKD-TKD |
| PQCE025 | 25 | 20 | 69 | 14 | 16 | *F03 x 5,5 | F05 x 6,5 | VKD-TKD |
| PQCE032 | 32 | 25 | 74 | 14 | 16 | *F03 x 5,5 | F05 x 6,5 | VKD-TKD |
| PQCE040 | 40 | 32 | 91 | 14 | 16 | F05 x 6,5 | F07 x 8,5 | VKD-TKD |
| PQCE050 | 50 | 40 | 97 | 14 | 16 | F05 x 6,5 | F07 x 8,5 | VKD-TKD |
| PQCE063 | 63 | 50 | 114 | 14 | 16 | F05 x 6,5 | F07 x 8,5 | VKD-TKD |
*F04 x 5.5 on request
