PMDK Wall mounting plate
Accessories for diaphragm valves series DK, DKL, DKB, DKD Dialock DN10-65
Wall mounting and distance plate

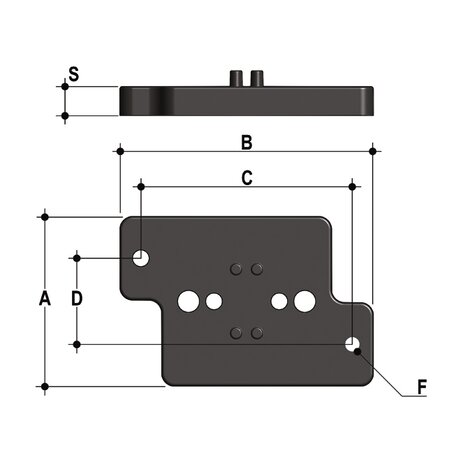

| Reference | d | DN | A | B | C | D | F | S | to be used with: |
|---|---|---|---|---|---|---|---|---|---|
| PMDK1 | 20 - 25 - 32 | 15 - 20 - 25 | 65 | 97 | 81 | 33 | 5,5 | 11 | DK - DKL - DKB - DKD |
| PMDK2 | 40 - 50 - 63 - 75 | 32 - 40 -50 - 65 | 65 | 144 | 130 | 33 | 6,5 | 11 | DK - DKL - DKB - DKD |
